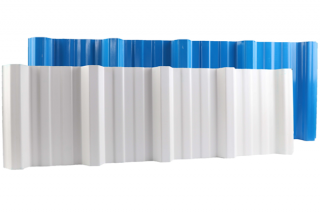

PVC corrugated heat insulation roof sheet ,main material is the corrosion resistance material PVC.Advanced co-extrusion technology to processing,can produce 2 layer ,3layer,4layer.Surface can be coated with high weather resistance material ASA to keep color long lasting .Compare with steel roof, pvc roof sheet with features of corrosion resistance,eco-friendly ,heat insualtion .
|
Material |
PVC ; ASA+PVC |
||
|
Thickness |
2.0mm |
2.5mm |
3.0mm |
|
Total width |
1050mm; 1130mm |
||
|
Valid width |
960mm; 1060mm |
||
|
Wave space |
240mm/210mm |
Wave height |
35mm/27mm |
|
Length |
customized ；Max 5.8m/20GP 11.8m/40GP |
||
|

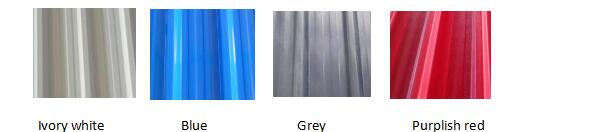

Color choices |
|
||
|

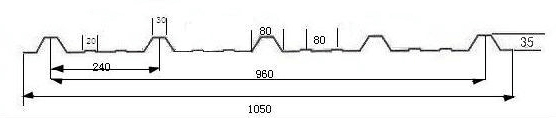

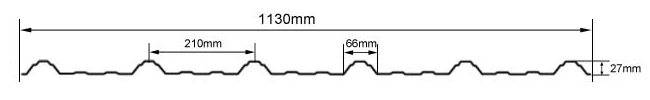

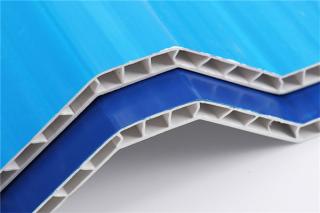

Section profile |
|
||
|

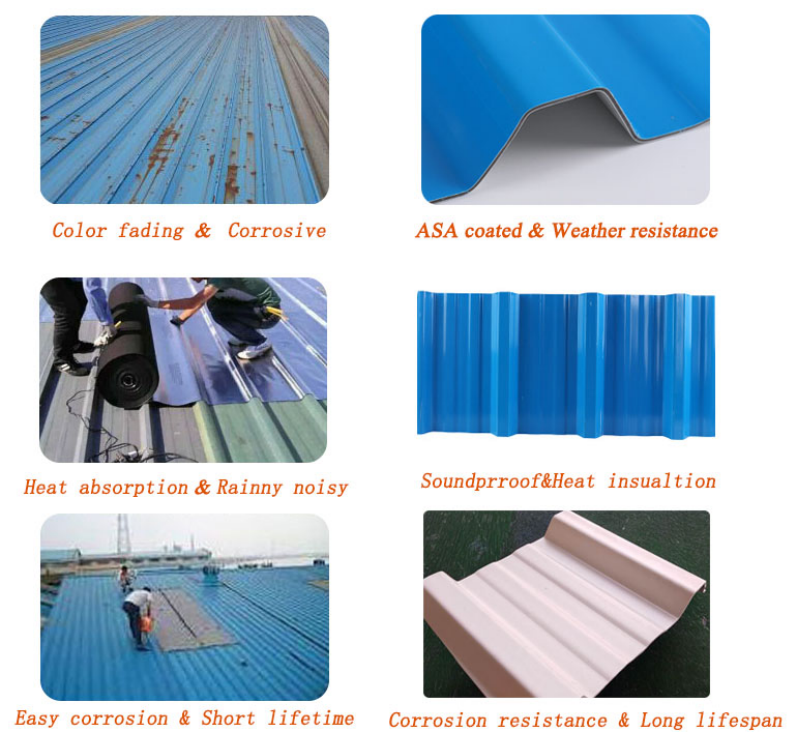

Long color lasting |
Imported ultra-high weather resistant engineering resin,it has exceptional durability in the natural environment, |
|
Corrosion resistance |
No chemical reaction when pvc roof sheet soaked in salt and alkali and various acid solutions below 60%. |
|
Heat insulation |
PVC has a very low heat conduction coefficient of 0.325w/m.k, 1/2000 of 0.5mm thick color steel tile.Even |
|
Easy installation |
Light weight and with eexcellent bending performace,high efficiency installation ;easy for load and unload |
|
Waterproof performance |
pvc material with anti-rust performance,which is dense and absorbing no water,no penetration problem. |

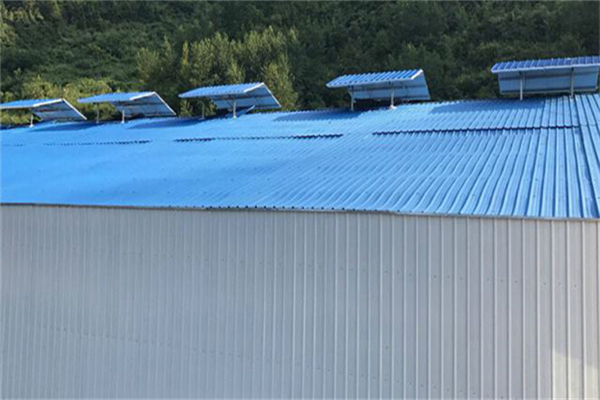

It is good choice forsteel factories,warehouses,farm market,market access,and other high-end roof materials. Especially in corrosive chemical plants, acid and other corrosive plant.
-

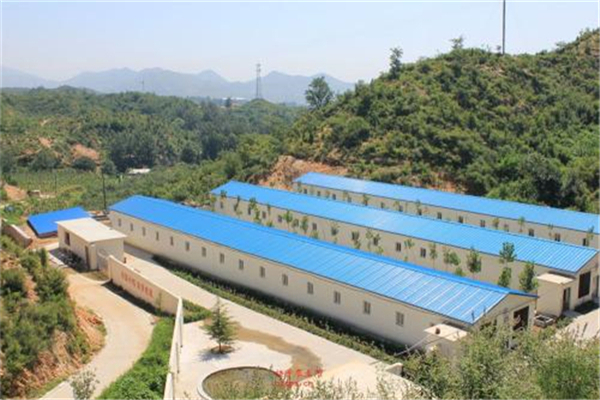

pvc roof sheet farm building
-

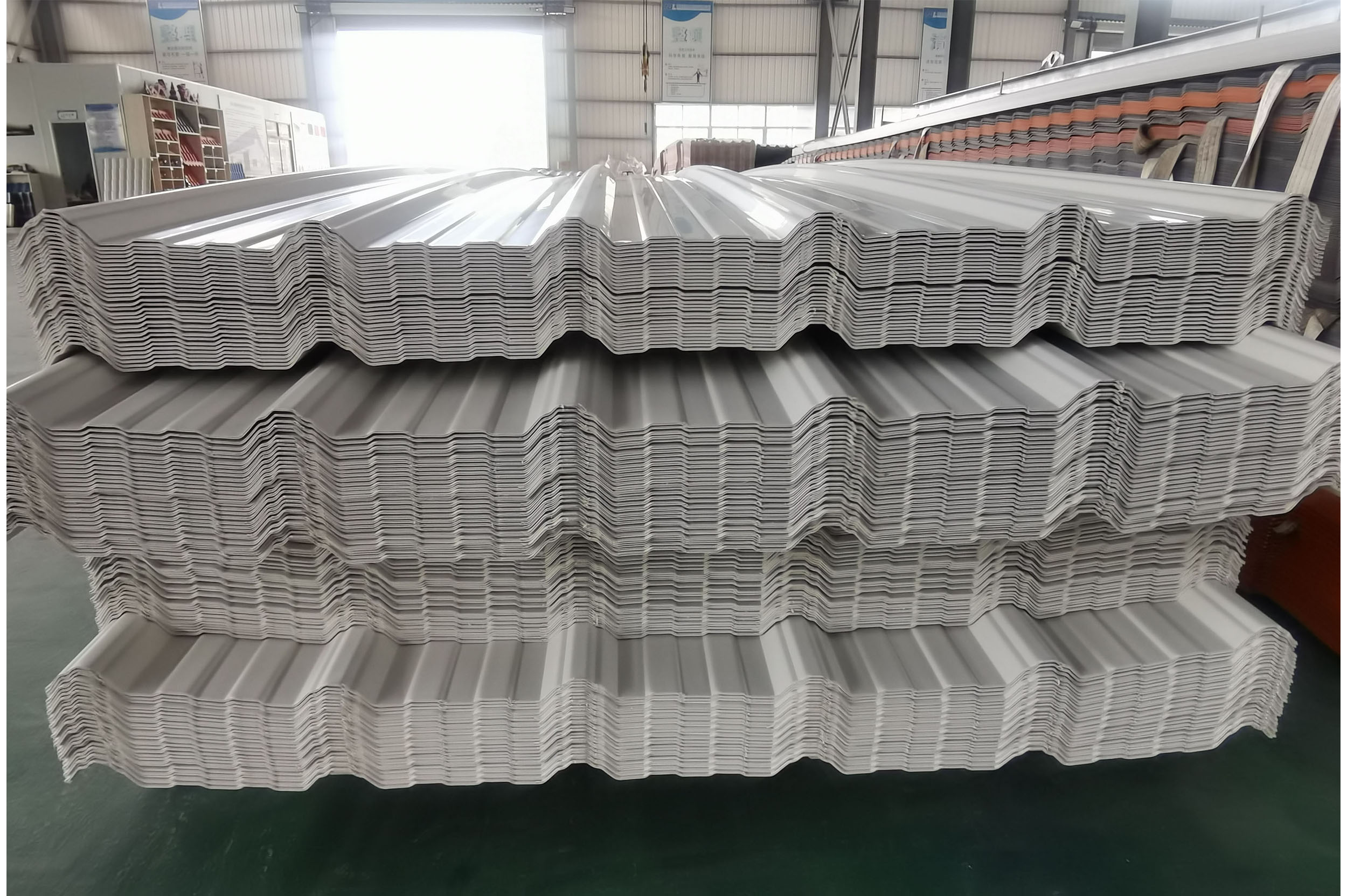

UPVC plasic roofing
-

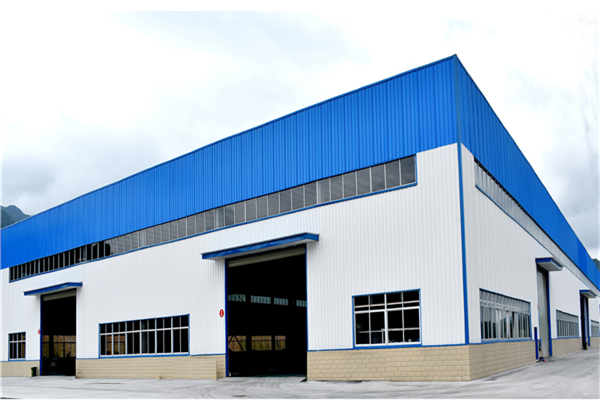

upvc roof sheet factory workshop
