Antique roof tile adopts advanced co-extrusion technology,the surface layer material is high weather resistance engineering resin ASA (acrylonitrile, styrene, acrylate) ,main body composite with corrosion resistance polyvinyl chloride resin and other materials.With the features of long lasting color,anti-impacting,isolation,Elegant shape with traditional Chinese elements in coloring.
Specification
|
Material |
ASA resin, PVC, and other additive materials |
||
|
Thickness |
2.5mm |
3.0mm |
|
|
Total width |
1050mm |
||
|
Valid width |
940mm |
||
|
Wave space |
240mm |
Wave height |
55mm |
|
Pitch |
125.6mm |
||
|
Length |
times of pitch 125.6mm; Max 5.7776m/20GP 11.806m/40GP |
||
|

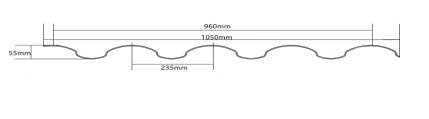

Section profile |
|
||
|
Corrosion resistance |
Can resist long term acid,alkali ans salt corrosion.Tests have proved that there would be no chemical reaction after soaking in salt and alkali or other acid under 60%.It is ideal for application in areas where is acid rain. |
|
Sound insulation |
ASA synthetic resin tile have noise absorption when suffered heavy rains and strong winds. |
|
Excellent heat insulation performance |
PVC has a very low heat conduction coefficient of 0.325w/m.k.Even without adding heat insulation layer,the heat insulation of ASA roof tile can still be excellent. |
|
Fireproof performance |
Fireproof performance≥class B1 level tested by the national testing department. |
|
Excellent loading ability |
It will not be damaged in large temperature variation and all year frequent wind,rain and snow.It will not be crack |
|
Good impact resistance |
Tested proved that will no crack or breakage with 1kg steel ball falling on it freely from the height of 3m. |
|
Eco-friendly |
There is no radioactive elements,all products can be recycled,meets the requirement of environment protection. |
|
Self-cleaning performance |
The surface is dense and smooth,with “dust and effect”,uneasy to absorb dust,can be cleaned by rain,also uneasy covered by snow. |

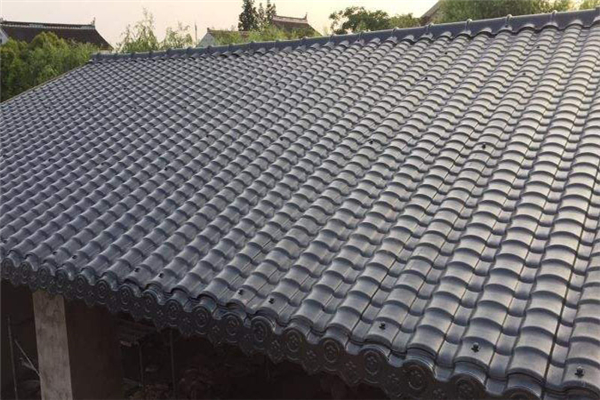

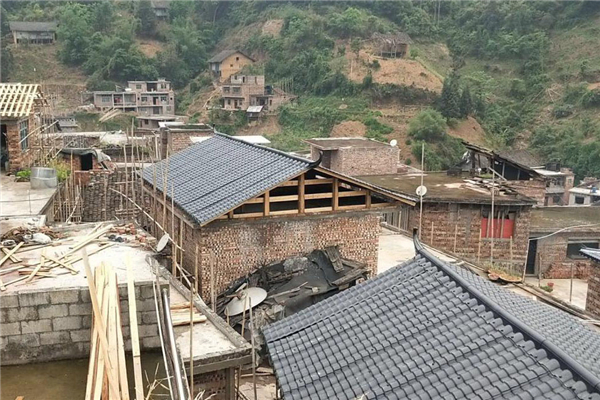

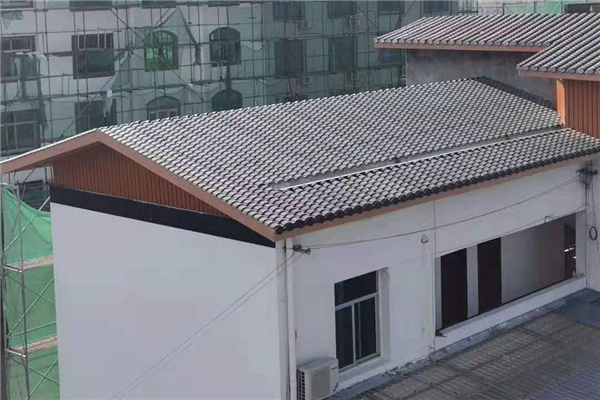

Widely used for ancient roof top.Beautiful countryside,old house renovation,reconstruction,tourist attraction,villa,residential building,mobile house,flat-to-slope roof changing,weather shed,sun sheds,car parks.
Excellent advantages
-
ASA grey tile
-
pvc corrugated roof tile
-
UPVC roof tile ASAplastic roof sheet
Antique roof tile adopts advanced co-extrusion technology,the surface layer material is high weather resistance engineering resin ASA (acrylonitrile, styrene, acrylate) ,main body composite with corrosion resistance polyvinyl chloride resin and other materials.With the features of long lasting color,anti-impacting,isolation,Elegant shape with traditional Chinese elements in coloring.
Accessory
-
ASA grey tile draining board
-

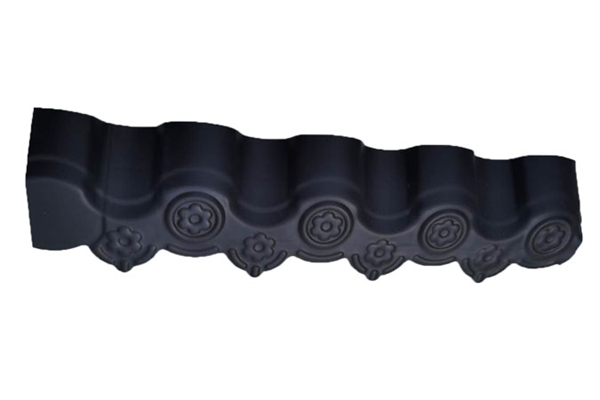

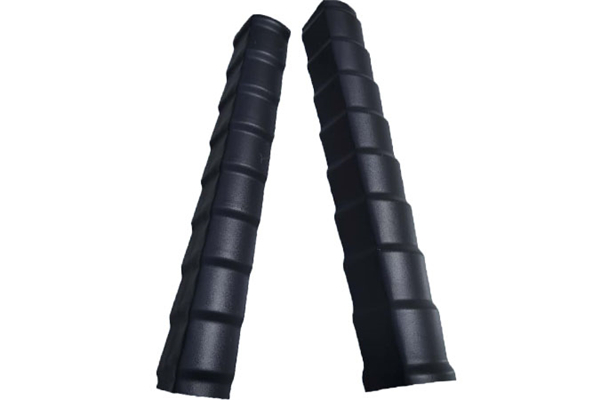

ASA grey tile main ridge
-

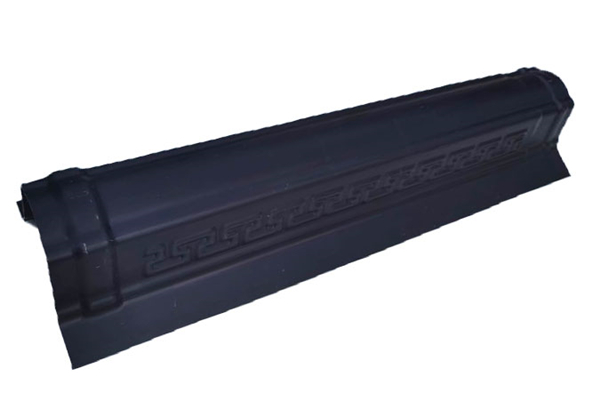

ASA grey tile left/right side cover
|
Corrosion resistance |
Can resist long term acid,alkali ans salt corrosion.Tests have proved that there would be no chemical reaction after soaking in salt and alkali or other acid under 60%.It is ideal for application in areas where is acid rain. |
|
Sound insulation |
ASA synthetic resin tile have noise absorption when suffered heavy rains and strong winds. |
|
Excellent heat insulation performance |
PVC has a very low heat conduction coefficient of 0.325w/m.k,1/2000 of 0.5mm thick color steel tile.Even without adding heat insulation layer,the heat insulation of ASA roof tile can still be excellent. |
|
Fireproof performance |
Fireproof performance≥class B1 level tested by the national testing department. |
|
Excellent loading ability |
It will not be damaged in large temperature variation and all year frequent wind,rain and snow.It will not be crack |
|
Good impact resistance |
Tested proved that will no crack or breakage with 1kg steel ball falling on it freely from the height of 3m. |
|
Eco-friendly |
There is no radioactive elements,all products can be recycled,meets the requirement of environment protection. |
|
Self-cleaning performance |
The surface is dense and smooth,with “dust and effect”,uneasy to absorb dust,can be cleaned by rain,also uneasy covered by snow. |
Widely used for ancient roof top.Beautiful countryside,old house renovation,reconstruction,tourist attraction,villa,residential building,mobile house,flat-to-slope roof changing,weather shed,sun sheds,car parks.
