Material |
ASA resin, PVC, and other additive materials |
||
|
Thickness |
2.3mm |
2.5mm |
3.0mm |
|
Total width |
1050mm |
||
|
Valid width |
960mm |
||
|
Wave space |
160mm |
Wave height |
30mm |
|
Pitch |
219mm |
||
|
Length |
times of pitch 219mm；Max 5.694m/20GP 11.826m/40GP |
||
|

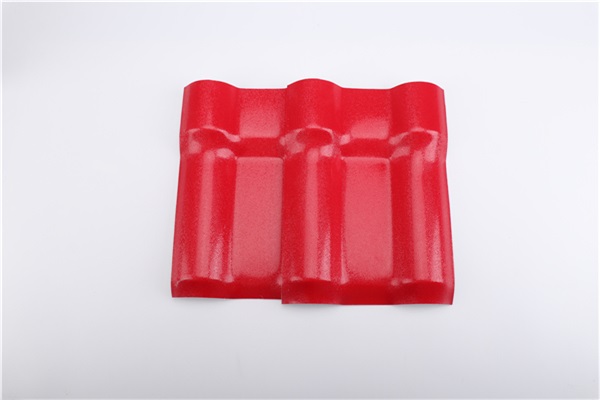

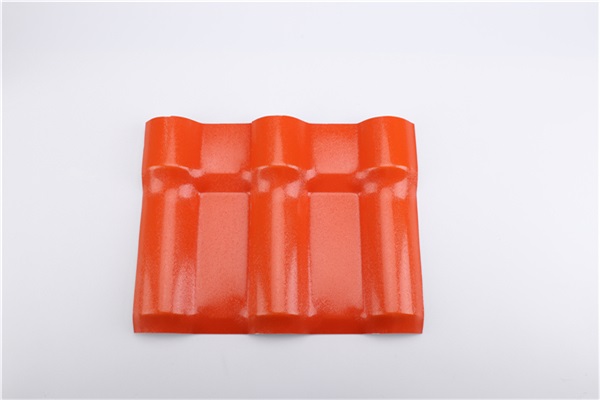

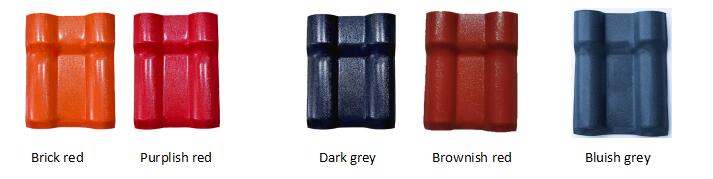

Color choices
|
|
||
|

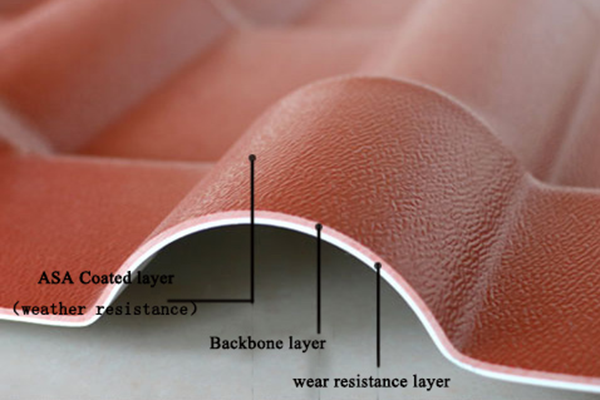

Section profile |
|||
|
|
|||
|
Corrosion resistance |
Can resist long term acid,alkali ans salt corrosion.Tests have proved that there would be no chemical reaction after soaking in salt and alkali or other acid under 60%.It is ideal for application in areas where is acid rain. |
|
Sound insulation |
ASA synthetic resin tile have noise absorption when suffered heavy rains and strong winds. |
|
Excellent heat insulation performance |
PVC has a very low heat conduction coefficient of 0.325w/m.k.Even without adding heat insulation layer,the heat insulation of ASA roof tile can still be excellent. |
|
Fireproof performance |
Fireproof performance≥class B1 level tested by the national testing department. |
|
Excellent loading ability |
It will not be damaged in large temperature variation and all year frequent wind,rain and snow.It will not be crack |
|
Good impact resistance |
Tested proved that will no crack or breakage with 1kg steel ball falling on it freely from the height of 3m. |
|
Eco-friendly |
There is no radioactive elements,all products can be recycled,meets the requirement of environment protection. |
|
Self-cleaning performancee |
The surface is dense and smooth,with “dust and effect”,uneasy to absorb dust,can be cleaned by rain,also uneasy covered by snow. |
Widely used for various permanent buildings roof decoration.Beautiful countryside,old house renovation,reconstruction,tourist attraction,villa,residential building,mobile house,flat-to-slope roof changing,weather shed,sun sheds,car parks.

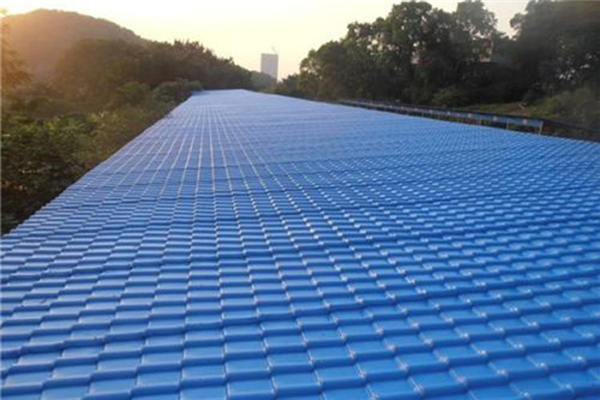

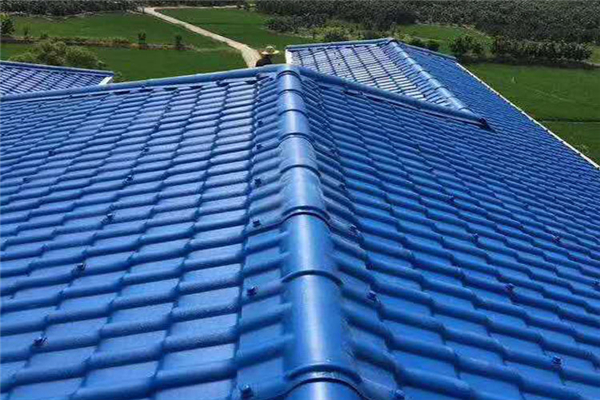

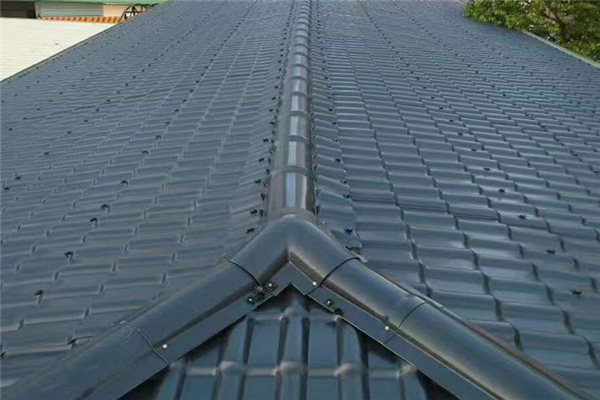

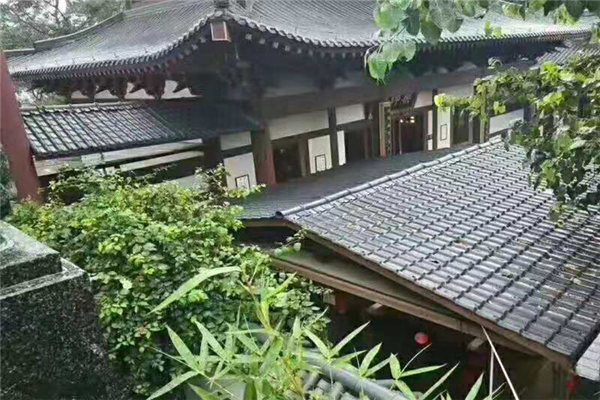

Application case
-
4layer ASA roof tiles
-
ASA PVC tile house
-
ASA synthetic resin tile grey
-
ASA synthetic resin tile villa upvc roofing
-
heat insualtion upvc plastic tile
-
upvc corrugated roof tiles ASA synthetic resin tile application
-

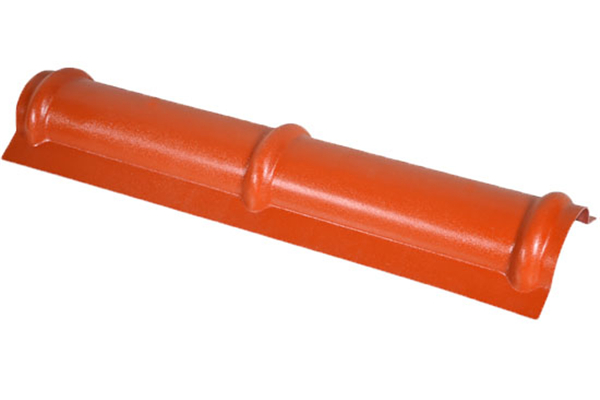

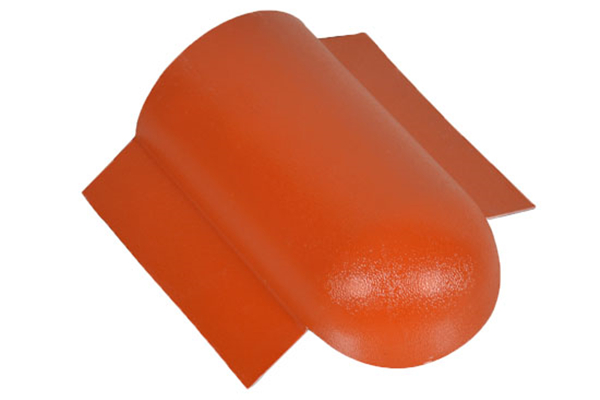

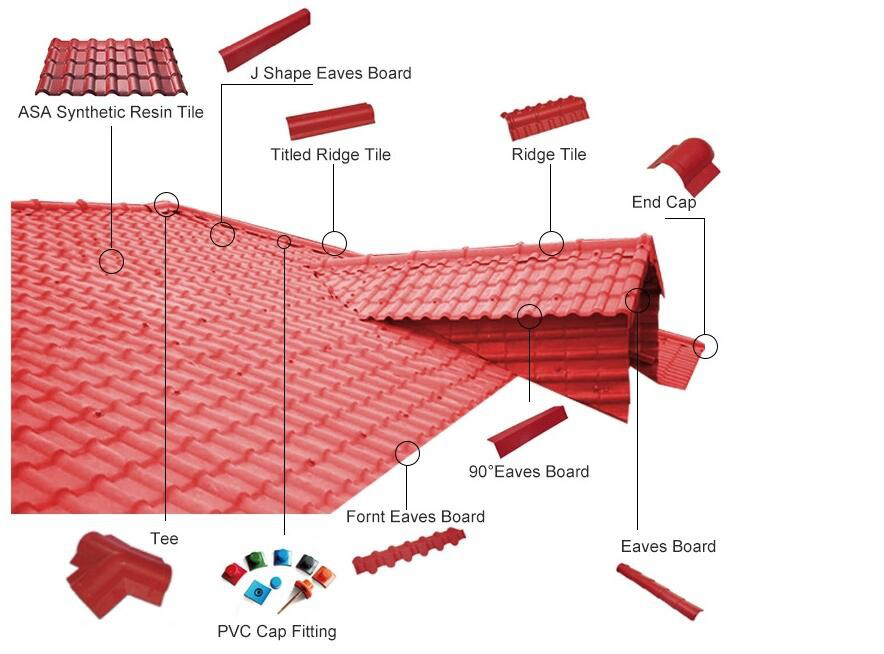

1.Main Ridge Tile For main roof covering
-

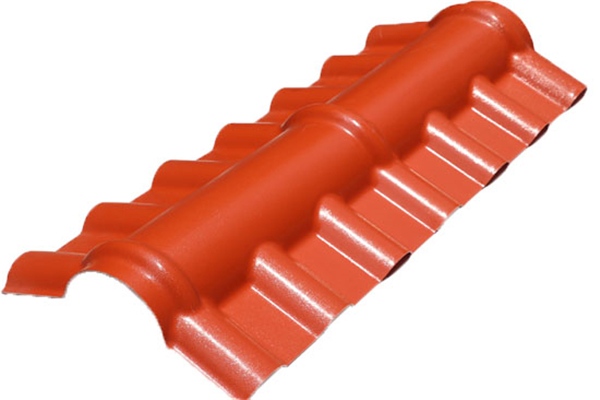

2. Titled ridge tile For titled roof covering
-

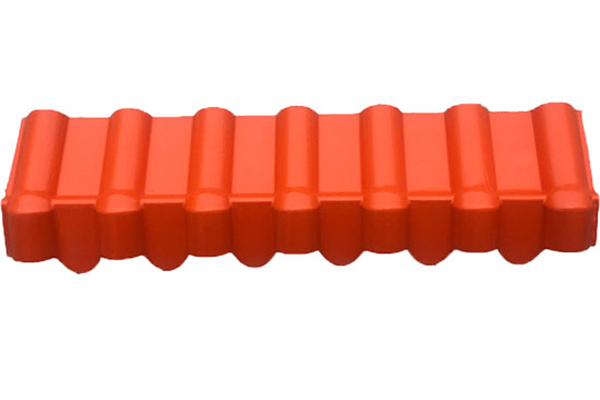

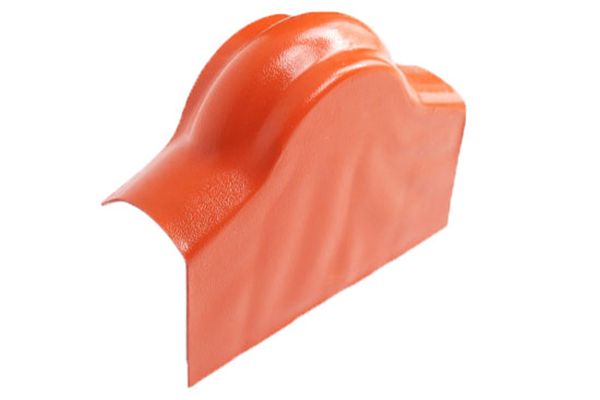

3.End cap of main roof tile Cover the top ridge to avoid water-leak
-
4.End cap of titled ridge tile To cover the titled ridge to avoid water-leak
-

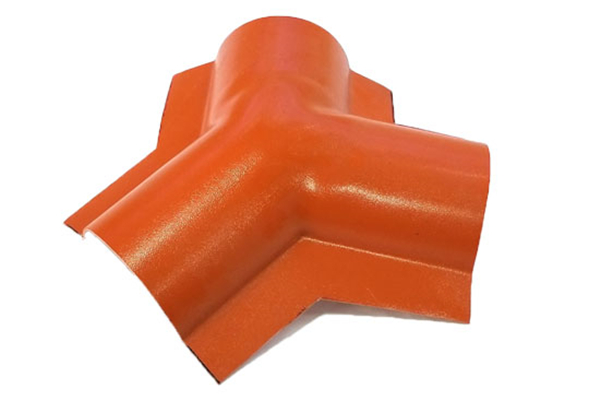

5.Tee Cover and connect main ridge and titled ridge
-

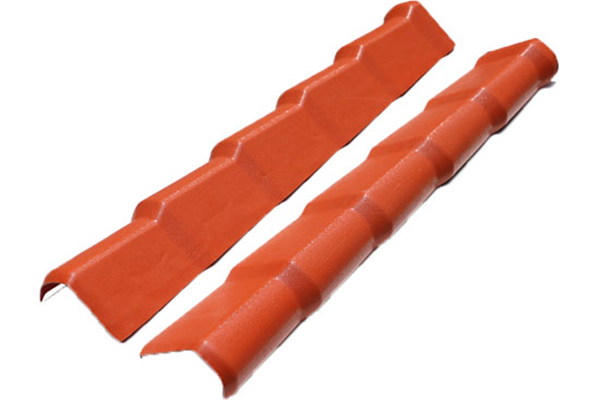

6.Left/right side cover One for left side,one for right side
-
7.Draining board Flashing board for rain draing
-

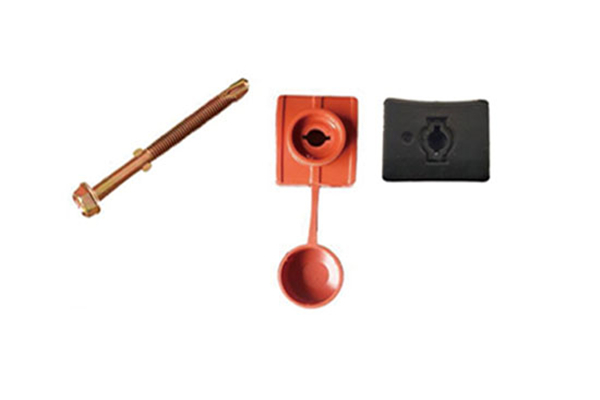

8.Waterproof Screw
◎Square tube (60mm*40mm*3mm or C-shaped steel (100mm*50mm*20mm*3mm) or anti-corrosion wood (60*40mm);

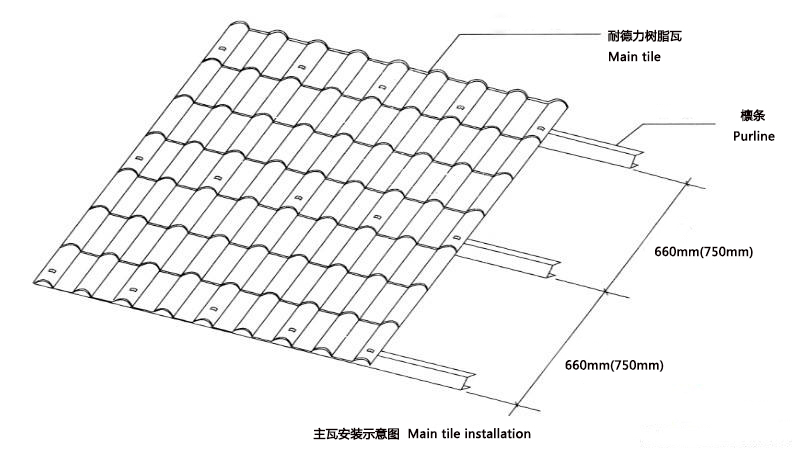

◎The spacing of the slats is 660mm, which is arranged from top to bottom;

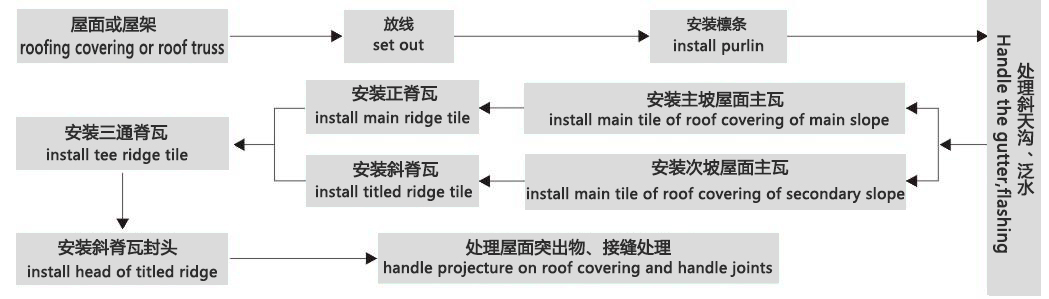

◎The main tile should be installed in reverse according to the local wind direction. →When installing main ridge tiles,please cut out a
section of the first tile before installing. →The joints of the main ridge tile and titled ridge tile should be sawed, then install the tee;"
◎The fixing parts are special accessories. When fixing,choose the electric drill, the hole diameter is 2mm larger than the hook screw,
and the self-tapping screw is recommended to use the diameter 6mm."
